Proudly serving the corrugated board industry
First choice for all machine knives, grinding wheels & other parts

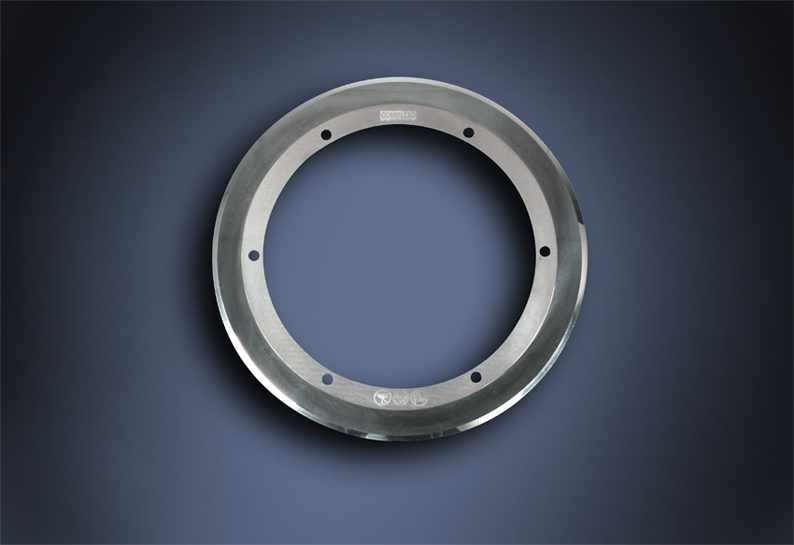

Corrflexo offers a wide variety of high quality tungsten carbide razor slitting blades. This includes standard sizes, which are normally in stock or delivered within a few days after receiving the order, and also speciality slitting blades which would be made to your specifications.
Famous sizes of razor slitting blades
Model | OD (mm) | ID (mm) | Thickness (mm) | Holes (mm) |
Agnati | Φ220 | Φ115 | 1.0 | 3×Φ9.0 |
Fosber | Φ230 | Φ110 | 1.1 | 6×Φ9.0 |
BHS | Φ240 | Φ32 | 1.2 | 2×Φ8.5 |
Agnati | Φ240 | Φ115 | 1.0 | 3×Φ9.0 |
Peters | Φ250 | Φ150 | 0.8 | no holes |
Marquip | Φ260 | Φ168.20 | 1.2 | 8×Φ10.5 |
Isowa | Φ260 | Φ140 | 1.0 | 6×Φ9.5 |
MHE | Φ280 | Φ202 | 1.4 | 6×Φ7.5 |
Fosber | Φ291 | Φ203 | 1.0 | 6×Φ8.5 |
TCY | Φ300 | Φ112 | 1.2 | 6×Φ11.0 |
MHE | Φ280 | Φ160 | 1.0 | 6×Φ7.6 |
Ming Wei | Φ265 | Φ112 | 1.2 | 6×Φ11.0 |
Kindly check if your model is mentioned above and ask today for your special offer. Please remember that tungsten carbide wears up to 100 times longer than steel in conditions including abrasion and erosion. We have convinced many customers to replace their current HSS, ASP or standard TC razor slitting blades with our advanced tungsten carbide slitting blades. The feedback of our customers is more than encouraging and exceeds all expectations.
Our superior tungsten carbide razor slitting blades are used successfully in many corrugated board plants world-wide. With optimum grade selection, our sub micron grain size tungsten carbide blades can slit some additional million metres of corrugated board.
Density: 14.1~14.4 g/cm3
Hardness: HRA 90.5-91.5
Bending strength: 3400-4000 Mpa
* Maximum tool life time,
normally 6 to 8 million metres
* Advanced HIP process for avoiding
chipping / breakage
* Super mirror finish to protect the
blade from glue adhering
* Competitive prices and volume
discount are available.
* Each blade is separately packed and
safed in an elegant light carton box.
